How to customize legends for categorical data in Matplotlib

logo of a chart:Colours

This post explains how to create a legend for categorical data in Matplotlib. It shows how to use the default legend provided in Matplotlib, as well as how to create your own legend using text and arrows.

For an explanation of how to create a legend for numerical data, check out this post.

Libraries

For creating this chart, we will need to load the following libraries:

import pandas as pd
import matplotlib.pyplot as plt
from highlight_text import ax_text

# set a higher resolution for the plots
plt.rcParams['figure.dpi'] = 200

Legend

In data visualization, a legend is essential as it clarifies the symbols, colors, and patterns used in a chart or graph. It is crucial because it enables viewers to immediately comprehend the presented data, ensuring both clarity and accurate interpretation.

If your chart requires significant time to understand, there is likely an issue!

Default legend

The default legend in matplotlib is typically added using the legend() function. This method provides a straightforward way to include a legend in a plot, but it is not always the most effective. While the default legend is positioned in the best location to prevent overlapping with the plot, this might not be optimal for the data being displayed.

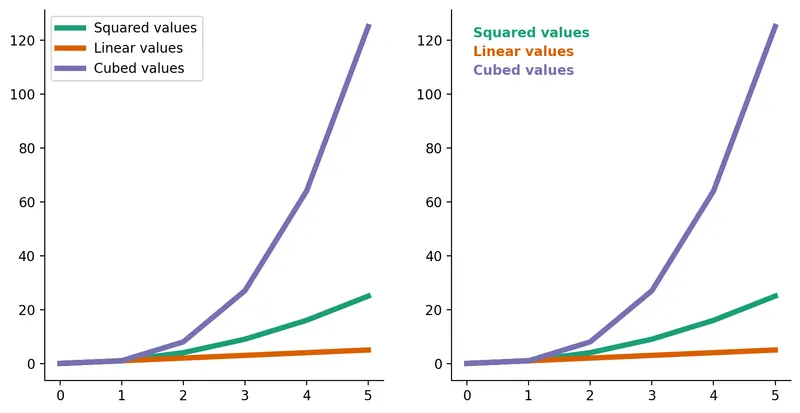

In the example below, we create two line plots:

  • One with a default legend (using ax.legend())
  • One with a custom legend (using the highlight_text library and the ax_text() function)

The goal is to demonstrate that an effective legend does not require an explicit description like "this color represents this category." Instead, it should be seamlessly integrated into the plot, making the data intuitive and easy to understand.

# Sample data
x = [0, 1, 2, 3, 4, 5]
y1 = [0, 1, 4, 9, 16, 25]
y2 = [0, 1, 2, 3, 4, 5]
y3 = [0, 1, 8, 27, 64, 125]
colors = ["#1B9E77", "#D95F02", "#7570B3"]

# Create a figure and axis
fig, ax = plt.subplots(ncols=2, figsize=(10, 5))

# Left plot
ax[0].plot(x, y1, label='Squared values', color=colors[0], linewidth=4)
ax[0].plot(x, y2, label='Linear values', color=colors[1], linewidth=4)
ax[0].plot(x, y3, label='Cubed values', color=colors[2], linewidth=4)
ax[0].spines[["top", "right"]].set_visible(False)
ax[0].legend()

# Right plot
ax[1].plot(x, y1, label='Squared values', color=colors[0], linewidth=4)
ax[1].plot(x, y2, label='Linear values', color=colors[1], linewidth=4)
ax[1].plot(x, y3, label='Cubed values', color=colors[2], linewidth=4)
ax[1].spines[["top", "right"]].set_visible(False)

# Custom legend for right plot
ax_text(
      x=0.1, y=125, ax=ax[1],
      s="<Squared values>\n<Linear values>\n<Cubed values>",
      fontsize=10, fontweight="bold",
      va="top", ha="left",
      highlight_textprops=[
         {"color": colors[0]},
         {"color": colors[1]},
         {"color": colors[2]}
      ],
)

# Show the plot
plt.show()

Customization

Even though the ax.legend() function offers extensive customization (such as font, size, color, etc), it is not always sufficient.

On the other hand, the ax_text() function from the highlight_text library enables us to achieve almost any customization we desire, albeit with a bit more effort and code. This method is excellent for creating a custom legend that is seamlessly integrated into the plot, enhancing the clarity of the data being presented.

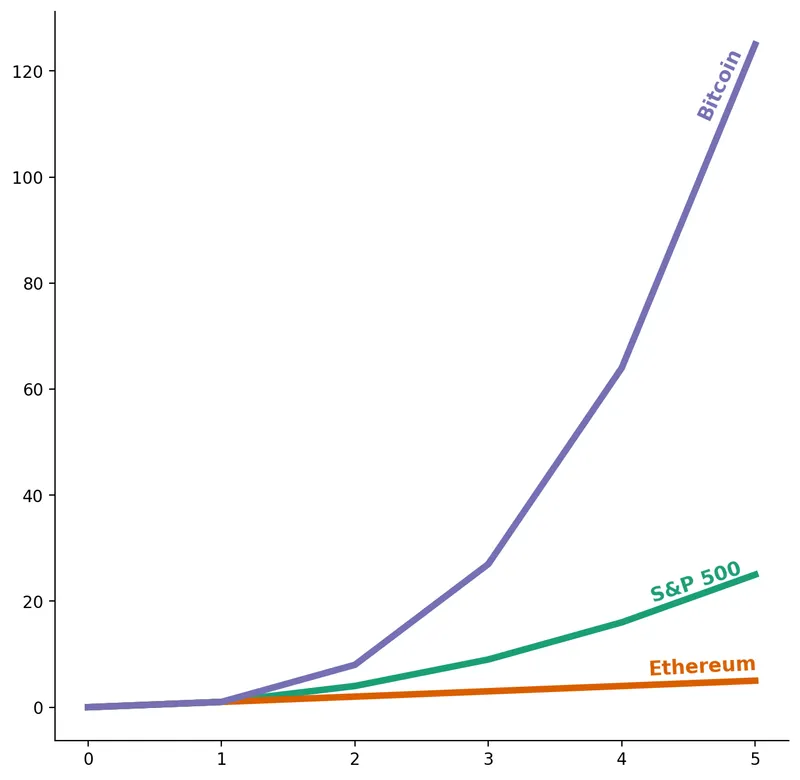

Let's explore how we can enhance our previous chart:

# Sample data
x = [0, 1, 2, 3, 4, 5]
y1 = [0, 1, 4, 9, 16, 25]
y2 = [0, 1, 2, 3, 4, 5]
y3 = [0, 1, 8, 27, 64, 125]
colors = ["#1B9E77", "#D95F02", "#7570B3"]

# Create a figure and axis
fig, ax = plt.subplots(figsize=(8, 8))

# Plot
ax.plot(x, y1, label='Squared values', color=colors[0], linewidth=4)
ax.plot(x, y2, label='Linear values', color=colors[1], linewidth=4)
ax.plot(x, y3, label='Cubed values', color=colors[2], linewidth=4)
ax.spines[["top", "right"]].set_visible(False)

# Custom legend
ax_text(x=4.55, y=125, ax=ax, s="Bitcoin", fontsize=12, fontweight="bold", va="top", ha="left", color=colors[2], rotation=65)
ax_text(x=4.2, y=10, ax=ax, s="Ethereum", fontsize=12, fontweight="bold", va="top", ha="left", color=colors[1], rotation=3)
ax_text(x=4.2, y=28, ax=ax, s="S&P 500", fontsize=12, fontweight="bold", va="top", ha="left", color=colors[0], rotation=18)

# Show the plot
plt.show()

Legend with arrows

Another way to create a custom legend is to use arrows (especially curved ones). This method effectively highlights the relationship between elements, making the connection between the legend and the data clear and intuitive.

Since drawing curved arrows is not straightforward in matplotlib, we will begin by creating a draw_arrow() function to facilitate this process.

This function takes a bunch of arguments, such as the ax object, the starting and ending points of the arrow, the curvature, and the color. It then uses the FancyArrowPatch class from the matplotlib.patches module to draw the arrow.

from matplotlib.patches import FancyArrowPatch
import matplotlib.pyplot as plt

def draw_arrow(
      ax,
      tail_position,
      head_position,
      invert=False,
      radius=0.5,
      color='black',
      lw=0.5,
      head_width=4,
      head_length=8,
      tail_width=0.5
   ):
   kw = dict(arrowstyle=f"Simple,tail_width={tail_width},head_width={head_width},head_length={head_length}", color=color, lw=lw)
   if invert:
      connectionstyle = f"arc3,rad=-{radius}"
   else:
      connectionstyle = f"arc3,rad={radius}"
   a = FancyArrowPatch(
      tail_position, head_position,
      connectionstyle=connectionstyle,
      **kw
   )
   ax.add_patch(a)

# Example usage

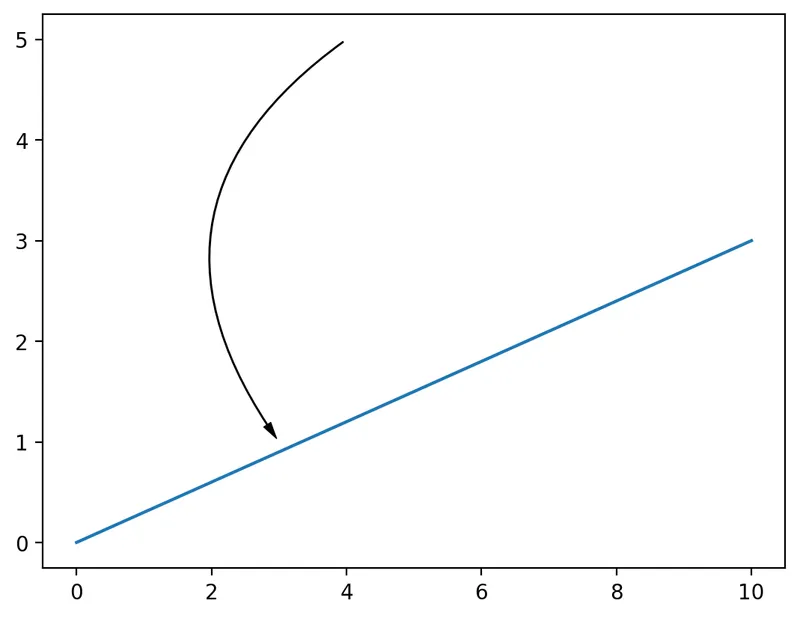

fig, ax = plt.subplots()
ax.plot([0, 10], [0, 3])
draw_arrow(ax, (4, 5), (3, 1))
plt.show()

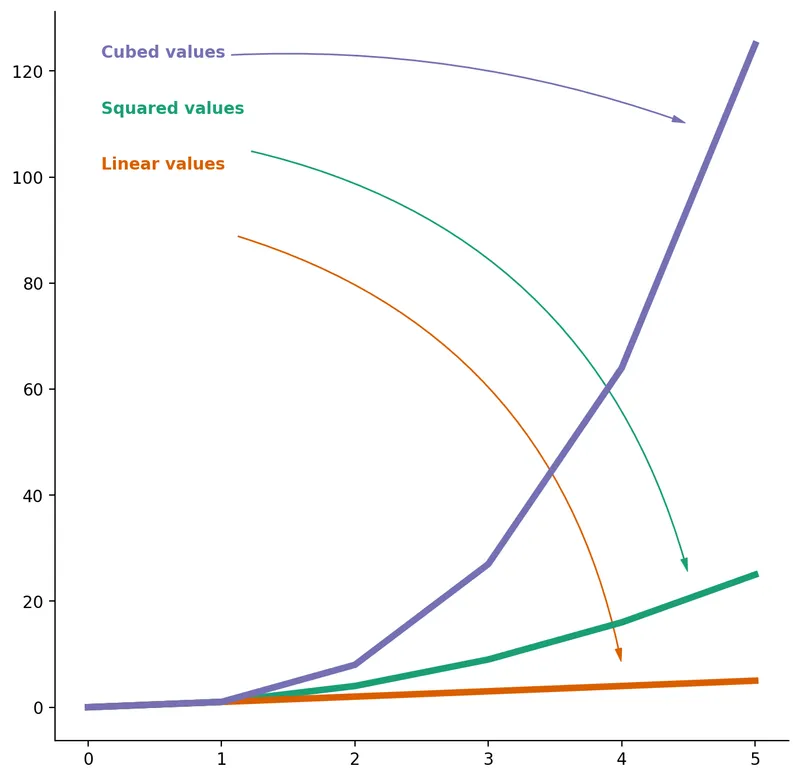

Now let's use this function to create a nice legend:

# Sample data
x = [0, 1, 2, 3, 4, 5]
y1 = [0, 1, 4, 9, 16, 25]
y2 = [0, 1, 2, 3, 4, 5]
y3 = [0, 1, 8, 27, 64, 125]
colors = ["#1B9E77", "#D95F02", "#7570B3"]

# Create a figure and axis
fig, ax = plt.subplots(figsize=(8, 8))

# Plot
ax.plot(x, y1, label='Squared values', color=colors[0], linewidth=4)
ax.plot(x, y2, label='Linear values', color=colors[1], linewidth=4)
ax.plot(x, y3, label='Cubed values', color=colors[2], linewidth=4)
ax.spines[["top", "right"]].set_visible(False)

# Custom legend
ax_text(
      x=0.1, y=125, ax=ax,
      s="<Cubed values>\n\n\n\n\n\n<Squared values>\n\n\n\n\n\n<Linear values>",
      fontsize=10, fontweight="bold",
      va="top", ha="left",
      highlight_textprops=[
         {"color": colors[2]},
         {"color": colors[0]},
         {"color": colors[1]}
      ],
)

# Draw arrows
draw_arrow(ax, (1.05, 123), (4.5, 110), invert=True, color=colors[2], radius=0.1)
draw_arrow(ax, (1.2, 105), (4.5, 25), invert=True, color=colors[0], radius=0.3)
draw_arrow(ax, (1.1, 89), (4, 8), invert=True, color=colors[1], radius=0.3)

# Show the plot
plt.show()

Which one to choose?

There is no one-size-fits-all answer to this question; it depends on both the data being presented and the audience.

Additionally, some might argue that arrows crossing the plot are not the best choice or that the code becomes overly complex for delivering the same information.
