How to customise annotations in Matplotlib

logo of a chart:ScatterPlot

With matplotlib, you can create annotations to highlight specific parts of a chart, but it's a limited tool.

In this post, we'll see how one can customise the style and color of annotations in matplotlib using the highlight_text package.

Arrows

In data visualization, arrows can be used to highlight a specific part of a chart.

Actually, it is generally what makes a chart really insightful and makes want you to look at it. Here's a great example that illustrates this point:

great chart with arrow

Even this simple arrow makes the chart mure more informative and comprehensive!

In this post, you'll learn how to add and custom arrows to your charts using the matplotlib library.

Libraries

For this post, we'll only need the load matplotlib:

import matplotlib.pyplot as plt

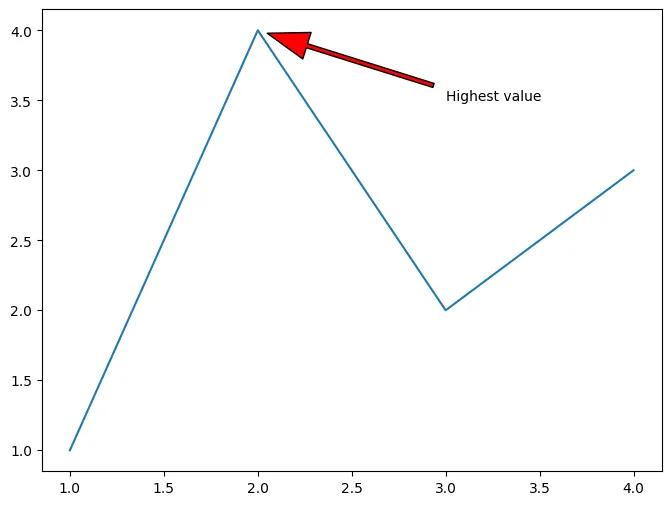

Arrow with annotate()

When adding an annotation with annotate(), you can specify an arrow that points to the annotated point.

Here are the arguments to pass:

  • xy: the point to annotate (where the arrow points to)
  • xytext: the position of the text (where the arrow starts)
  • arrowprops: a dictionary of properties to customize the arrow
# simple plot
fig, ax = plt.subplots(figsize=(8, 6))
ax.plot(
    [1, 2, 3, 4],
    [1, 4, 2, 3]
)

# arrow with annotate()
ax.annotate(
    'Highest value',
    xy=(2, 4), # point to annotate
    xytext=(3, 3.5), # position of text
    arrowprops=dict(
        facecolor='red', # color of arrow
        shrink=0.05, # distance from point
        width=3, # width of arrow
        headwidth=20, # width of arrow head
        headlength=30 # length of arrow head
    )
)

plt.show()

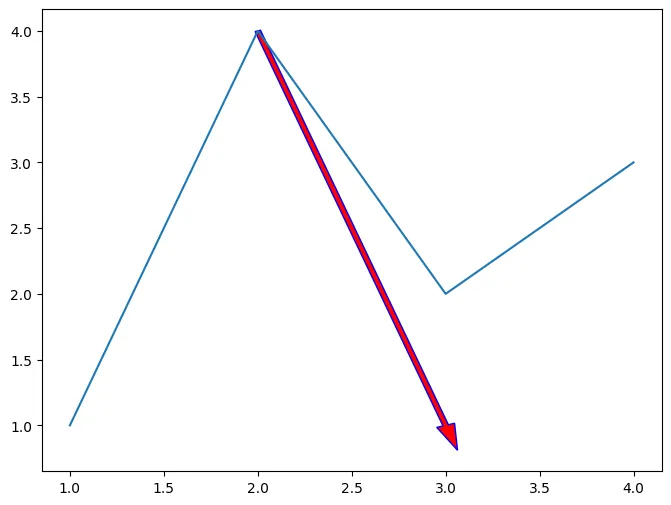

Arrow with arrow()

You can also add an arrow using the arrow() function. It's quite similar to annotate(). Here are the main arguments to pass:

  • x: the x-coordinate of the arrow
  • y: the y-coordinate of the arrow
# simple plot
fig, ax = plt.subplots(figsize=(8, 6))
ax.plot(
    [1, 2, 3, 4],
    [1, 4, 2, 3]
)

# arrow with arrow()
ax.arrow(
    2, 4, # start point
    1, -3, # direction
    width=0.03, # width of arrow
    head_width=0.1, # width of arrow head
    head_length=0.2, # length of arrow head
    fc='red', # color of arrow
    ec='blue' # color of border
)

plt.show()

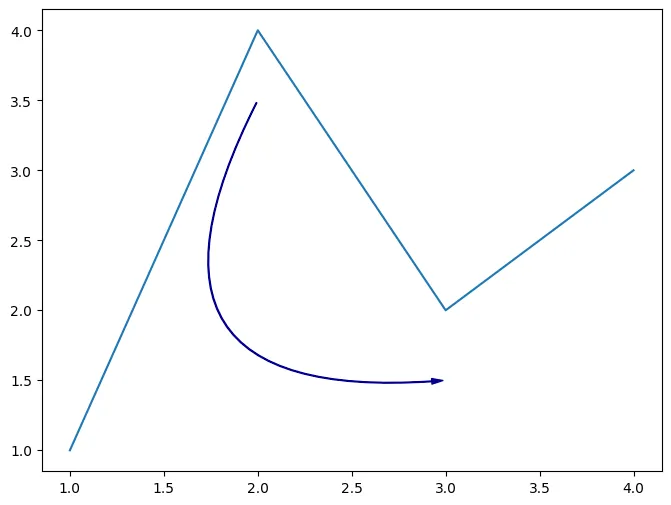

Arrow with FancyArrowPatch()

For this method, we first need to load the FancyArrowPatch class from the matplotlib.patches module. Then, we can create an arrow by passing the following arguments:

from matplotlib.patches import FancyArrowPatch

With this method, we can create arrows that don't have linear shapes.

For example, we can create a curved arrow by setting the connectionstyle argument, and modify the rad parameter to change the curvature of the arrow.

# simple plot
fig, ax = plt.subplots(figsize=(8, 6))
ax.plot(
    [1, 2, 3, 4],
    [1, 4, 2, 3]
)

# arrow with FancyArrowPatch()
arrow_style = "Simple, tail_width=0.5, head_width=4, head_length=8"
connection_style = "arc3,rad=.9"
arrow_properties = {
    "arrowstyle": arrow_style,
    "color": "darkblue",
}
tail_position = (2, 3.5)
head_position = (3, 1.5)
arrow = FancyArrowPatch(
    tail_position,
    head_position,
    connectionstyle=connection_style,
    **arrow_properties
)
ax.add_patch(arrow)

plt.show()

Going further

This post explains how to create arrows in matplotlib.

You might be interested in how to math in annotations or how to add an image in a plot
