Introduction to geopandas

logo of a chart:Map

GeoPandas is a powerful Python library for working with geospatial data. It extends the capabilities of pandas, allowing you to easily manipulate, analyze, and visualize geographic information with a familiar syntax!
In this post, we'll explore the fundamental features of GeoPandas, providing a solid foundation for beginners.

We'll cover five essential aspects of working with GeoPandas: introduction, reading data, basic manipulation, visualization, and geospatial operations. Each section includes explanations and practical code examples to get you started with this versatile library.

What is GeoPandas?

GeoPandas is a powerful Python library that extends pandas to handle geographic data. It combines:

  • Data manipulation tools of pandas
  • Geospatial functionality of libraries like shapely and fiona

Key benefits:

  • Efficient handling of geospatial data
  • Useful for data science and visualization projects

You can it with

pip install geopandas

And import it with:

import geopandas as gpd

Reading Geospatial Data

GeoPandas excels at reading various geospatial file formats:

  • Shapefiles
  • GeoJSON
  • GeoPackage

Let's read a GeoJSON file of world country boundaries:

Main functions used:

  • gpd.read_file(): Reads geospatial data from a file
  • gpd.datasets.get_path(): Provides path to built-in datasets
world = gpd.read_file(gpd.datasets.get_path('naturalearth_lowres'))
world.head()
/var/folders/m2/jfzxyg4s0xz3jyw5f94r7tcm0000gn/T/ipykernel_81203/913829029.py:1: FutureWarning: The geopandas.dataset module is deprecated and will be removed in GeoPandas 1.0. You can get the original 'naturalearth_lowres' data from https://www.naturalearthdata.com/downloads/110m-cultural-vectors/. world = gpd.read_file(gpd.datasets.get_path('naturalearth_lowres'))
pop_est continent name iso_a3 gdp_md_est geometry
0 889953.0 Oceania Fiji FJI 5496 MULTIPOLYGON (((180.00000 -16.06713, 180.00000...
1 58005463.0 Africa Tanzania TZA 63177 POLYGON ((33.90371 -0.95000, 34.07262 -1.05982...
2 603253.0 Africa W. Sahara ESH 907 POLYGON ((-8.66559 27.65643, -8.66512 27.58948...
3 37589262.0 North America Canada CAN 1736425 MULTIPOLYGON (((-122.84000 49.00000, -122.9742...
4 328239523.0 North America United States of America USA 21433226 MULTIPOLYGON (((-122.84000 49.00000, -120.0000...

Basic Data Manipulation

GeoPandas allows you to manipulate geometric data using familiar pandas operations:

  • Filtering
  • Grouping
  • Aggregating

Example: Filter to show only European countries:

europe = world[world['continent'] == 'Europe']
europe.head()
pop_est continent name iso_a3 gdp_md_est geometry
18 144373535.0 Europe Russia RUS 1699876 MULTIPOLYGON (((180.00000 71.51571, 180.00000 ...
21 5347896.0 Europe Norway NOR 403336 MULTIPOLYGON (((15.14282 79.67431, 15.52255 80...
43 67059887.0 Europe France FRA 2715518 MULTIPOLYGON (((-51.65780 4.15623, -52.24934 3...
110 10285453.0 Europe Sweden SWE 530883 POLYGON ((11.02737 58.85615, 11.46827 59.43239...
111 9466856.0 Europe Belarus BLR 63080 POLYGON ((28.17671 56.16913, 29.22951 55.91834...

Key concept: GeoDataFrames behave like regular pandas DataFrames but preserve geometric data.

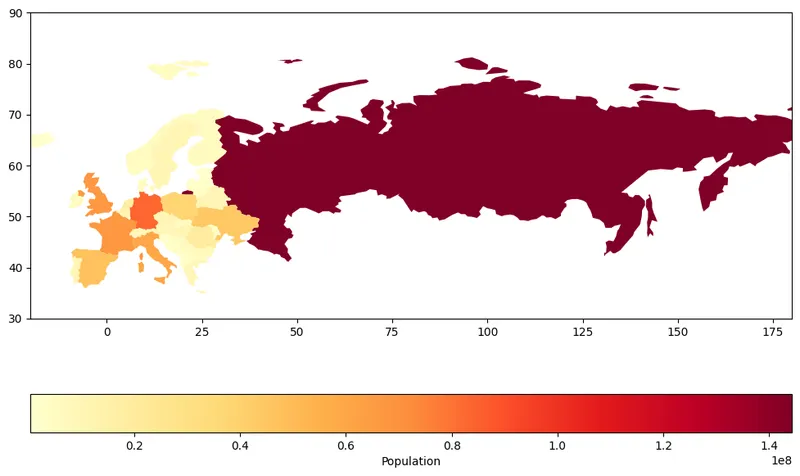

Visualizing Geospatial Data

GeoPandas leverages matplotlib for quick and easy map creation:

  • .plot(): Creates a plot of the GeoDataFrame
  • column: Specifies which data to use for coloring
  • cmap: Sets the color scheme
  • legend: Adds a color bar
  • figsize: Sets the figure size
ax = europe.plot(column='pop_est', cmap='YlOrRd', legend=True,
            legend_kwds={'label': 'Population', 'orientation': 'horizontal'},
            figsize=(12, 8))

ax.set_xlim(-20, 180)
ax.set_ylim(30, 90)
(30.0, 90.0)

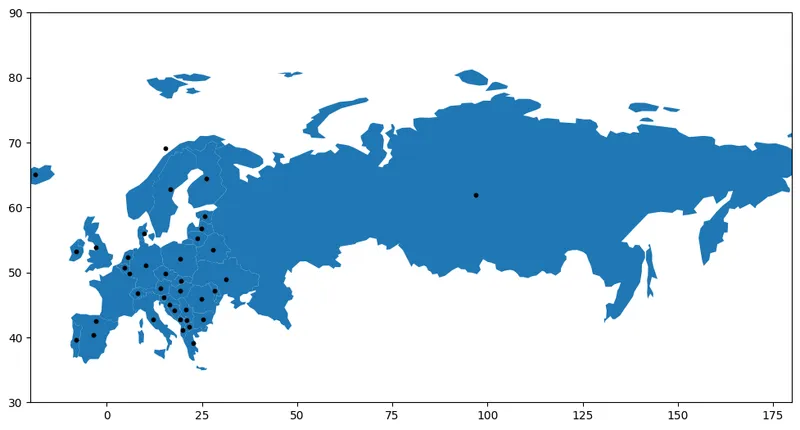

Geospatial Operations

GeoPandas enables various geospatial operations, crucial for advanced analysis and visualizations:

  • .geometry.centroid: Calculates the geometric center of each shape
  • .plot(): Can be used multiple times on the same axis (ax) to overlay different geometries
# Calculate centroids
europe['centroid'] = europe.geometry.centroid

# Plot countries and centroids
ax = europe.plot(figsize=(12, 8))
europe.centroid.plot(ax=ax, color='black', markersize=10)

ax.set_xlim(-20, 180)
ax.set_ylim(30, 90)
/var/folders/m2/jfzxyg4s0xz3jyw5f94r7tcm0000gn/T/ipykernel_81203/2886758021.py:2: UserWarning: Geometry is in a geographic CRS. Results from 'centroid' are likely incorrect. Use 'GeoSeries.to_crs()' to re-project geometries to a projected CRS before this operation. europe['centroid'] = europe.geometry.centroid /Users/josephbarbier/Desktop/The-Python-Graph-Gallery/venv/lib/python3.10/site-packages/geopandas/geodataframe.py:1525: SettingWithCopyWarning: A value is trying to be set on a copy of a slice from a DataFrame. Try using .loc[row_indexer,col_indexer] = value instead See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy super().__setitem__(key, value) /var/folders/m2/jfzxyg4s0xz3jyw5f94r7tcm0000gn/T/ipykernel_81203/2886758021.py:6: UserWarning: Geometry is in a geographic CRS. Results from 'centroid' are likely incorrect. Use 'GeoSeries.to_crs()' to re-project geometries to a projected CRS before this operation. europe.centroid.plot(ax=ax, color='black', markersize=10)
(30.0, 90.0)

Going further

TLDR: geopandas allows to

  • Perform spatial analysis
  • Create multi-layered visualizations

Remember, GeoPandas integrates well with other Python geospatial libraries:

  • cartopy for advanced mapping
  • folium for interactive web maps

These examples provide a foundation, but GeoPandas offers much more:

  • Spatial joins
  • Coordinate reference system operations
  • Complex geospatial analyses

As you explore further, you'll discover its full potential for geospatial data visualization and analysis.
