Histogram with colored tails

logo of a chart:Histogram

This post describes how to build a histogram with colored tails using python and its matplotlib library.
It creates a dummy dataset using numpy, make bins from it, attribute a specific color for each bin and finally draw the histogram with the bar() function of matplotlib.

Libraries

The following example is based on 2 libraries:

  • matplotlib is used for its bar() function and to customize the final chart.
  • numpy is used to create a dummy dataset and to create bins from it.

You can load those libraries as follow once they've been installed:

# Import libraries
import numpy as np
import matplotlib.pyplot as plt

Dataset

Let's use the random.normal() function of numpy to create a set of numeric values that follow a normal distribution. This function expects 3 arguments:

  • loc: the mean (or center) of the distribution
  • scale: the standard deviation of the distribution
  • size: the number of random numbers you want to generate
# Generate some random data (replace with your data)
my_variable = np.random.normal(0, 10, 2000)

Now, let's bin a draw the histogram from this dataset.

Binning the dataset

We now need to create bins from this dataset. Each bin will become a bar of the histogram.

np.histogram is a NumPy function used to do exactly this. It takes an array of data and a specified number of bins as input and returns two arrays: the bin edges and the counts of data points that fall into each bin, allowing for easy visualization of data distribution.

Let's see it in action:

# Compute the histogram of `my_variable` with 40 bins and get the bin edges
my_hist, bin_edges = np.histogram(my_variable, bins=40)

Set the color of each bins

We use a for loop that iterates over all our bins and assigns them a color according to their edges. The tails are defined using the lower_bound and upper_bound thresholds.

Don't forget to modify them according to your use-case.

# Define color thresholds
lower_bound = -10
upper_bound = 10

# Define colors for tails and center
lower_tail_color = "lightblue"
hist_center_color = "#69B3A2"
upper_tail_color = "darkgray"

# Init the list containing the color of each bin.
colors = []

for bin_edge in bin_edges:

    # Light blue: Assign a color to the bin if its edge is less than 'lower_bound'
    if bin_edge < lower_bound:
        colors.append(lower_tail_color)

    # Dark gray: Assign a color to the bin if its edge is greater than or equal to 'upper_bound'
    elif bin_edge >= upper_bound:
        colors.append(upper_tail_color)

    # Purple: Assign a color to the bin if its edge is between -10 and 10
    else:
        colors.append(hist_center_color)

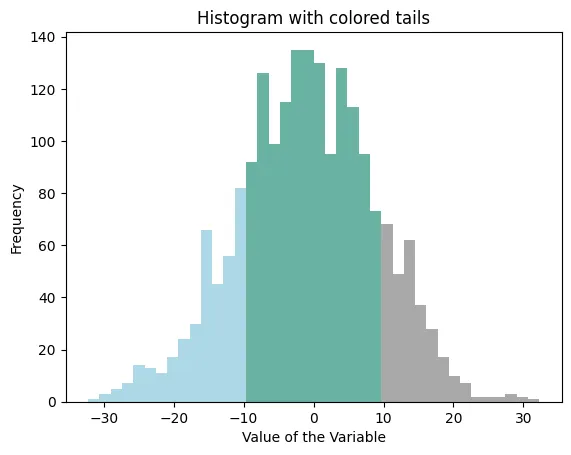

Histogram with colored tails

Finally!

Everything is now ready to build the histogram.

The bar() function of matplotlib does most of the work. You can check the barplot section of the gallery to understand more of it works. What's important here is to note that our list of colors (colors) that we made in the previous section is used for the color argument.

It is also interesting to note that this example does not use the hist function of matplotlib. Indeed, using the bar function is more convenient for fine grain control of bars.

# Create a bar plot with specified colors and bin edges
plt.bar(
    bin_edges[:-1],
    my_hist,
    width=np.diff(bin_edges),
    color=colors,
    edgecolor='none'
)

# graph customization
plt.title('Histogram with colored tails')  # Set the title of the plot
plt.xlabel('Value of the Variable')  # Set the label for the x-axis
plt.ylabel('Frequency')  # Set the label for the y-axis
plt.show()  # Display the plot

Going further

This post explained how to create a histogram with colored tails using matplotlib.

For more examples of how to customize your histogram, check the histogram section. You might be interested in how to make a histogram with seaborn for a better looking chart or even how to show several distribution with a mirror histogram.
